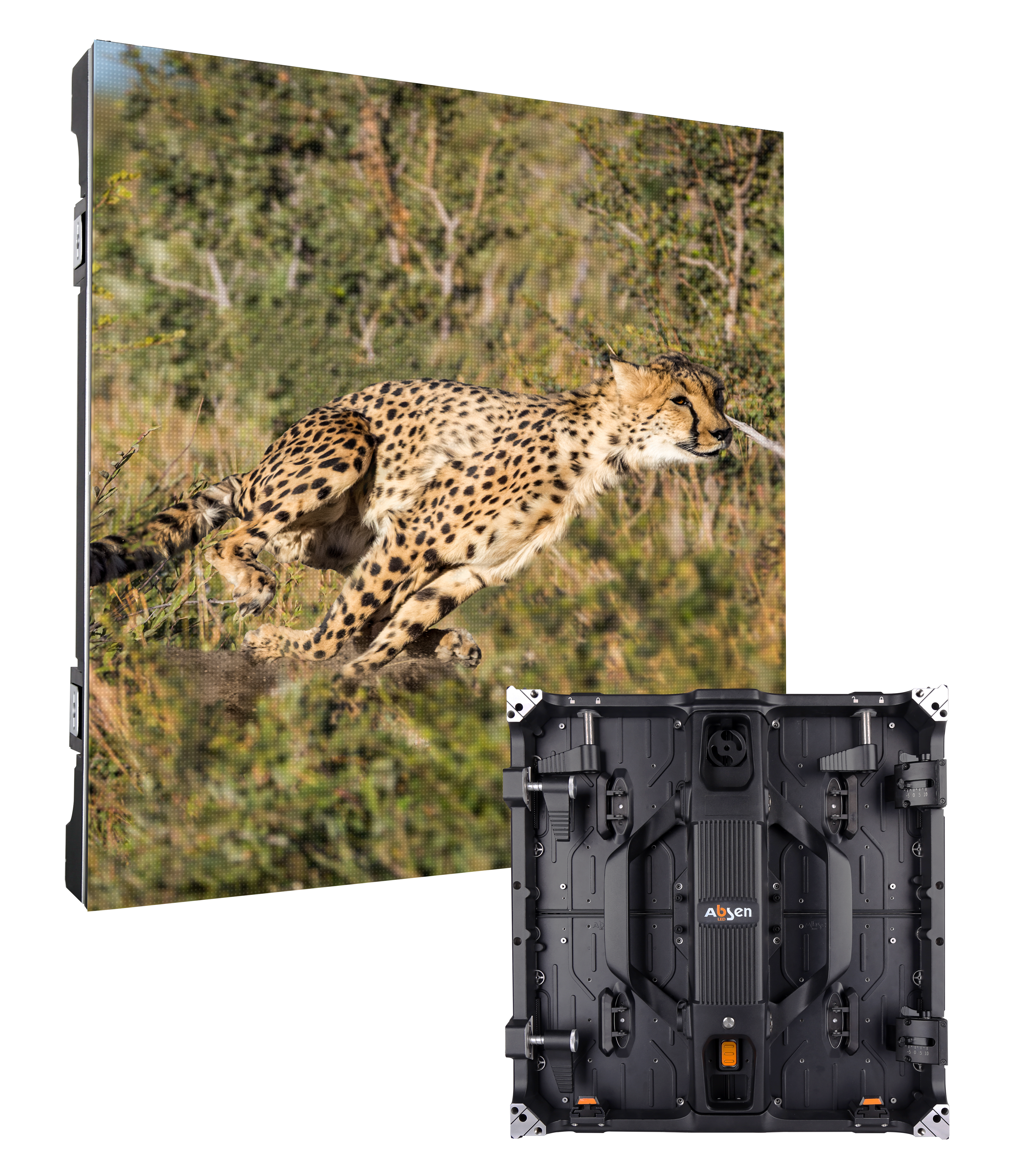

LED DISPLAY 2.9 mm PL Lite_Absen
Physical Parameters
Type of LED Black 2121 3in1 SMD
Pixel (mm) 2.9
Dimension of cabinet (WxHxD)/(mm) 500x500x87
Pixel per cabinet 168x168
Weight of cabinet (kg) 9.0
Cabinet material Casting of aluminum
Module dimensions (LxA) / (mm) 250×250
Parameters Optoelectronics
Brightness 1000
Update rate (Hz) 1920
Grey scale (bit) 13
Contrast 8000:1
Color temperature 7500
Angle of eyesight: (H / V) (°) 140/120
Type of LED Black 2121 3in1 SMD
Pixel (mm) 2.9
Dimension of cabinet (WxHxD)/(mm) 500x500x87
Pixel per cabinet 168x168
Weight of cabinet (kg) 9.0
Cabinet material Casting of aluminum
Module dimensions (LxA) / (mm) 250×250
Parameters Optoelectronics
Brightness 1000
Update rate (Hz) 1920
Grey scale (bit) 13
Contrast 8000:1
Color temperature 7500
Angle of eyesight: (H / V) (°) 140/120
Parameter Application
Temperature storage (℃) - 20 ~ + 50
Operating Temperature (℃) - 10 ~ + 40 Storage
Humidity (RH) 10% ~ 90%
Humidity operation (RH) 10% ~ 90%
IP Rating (Front /Rear) IP40 / IP21
LED life (H) 100000
Maintenance module RPSU and other
Maintenance R
Type of Installation Panel Rigging / Stuck, Rear Installation
Perforation (vertical) (PCS) 20
Temperature storage (℃) - 20 ~ + 50
Operating Temperature (℃) - 10 ~ + 40 Storage
Humidity (RH) 10% ~ 90%
Humidity operation (RH) 10% ~ 90%
IP Rating (Front /Rear) IP40 / IP21
LED life (H) 100000
Maintenance module RPSU and other
Maintenance R
Type of Installation Panel Rigging / Stuck, Rear Installation
Perforation (vertical) (PCS) 20
Driving Type 1/28 Voltage
AC Operation (V) 200~240
Power Consumption (Max./Avg.)(W / m²) 510/170
More informations: Click here
AC Operation (V) 200~240
Power Consumption (Max./Avg.)(W / m²) 510/170
More informations: Click here
