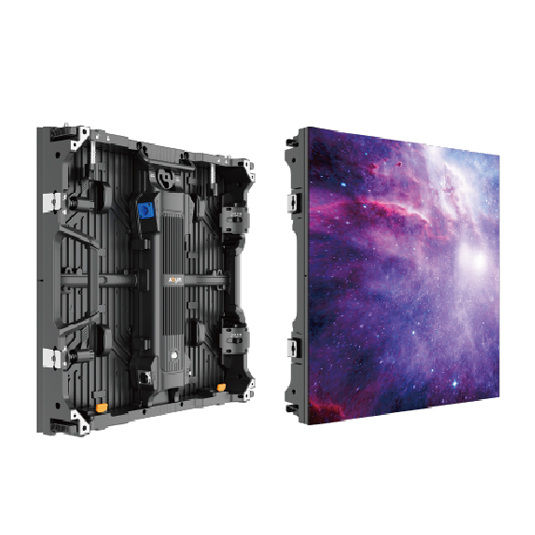

LED Panel Absen NT LED 2.6 mm indoor
Physical Parameters
brand: ABSEN NT 2.6
LED: Black SMD 3-in-1 1515
pixel pitch (mm): 2.6
cabinet dimensions (W×H×D) (mm): 500 × 500 × 80
module dimensions (W×H) (mm): 250 × 250
resolution per cabinet: 192 × 192
cabinet material: die-cast aluminum
cabinet weight (kg): 7.5
Optoelectronic Parameters
brightness (nits): 1000
refresh rate: 7680 Hz
grayscale (bit): 15
contrast ratio: 5,500:1
color temperature (K): 6500
viewing angle (H/V) (°): 160/160
operating voltage AC (V): 100–240
power consumption (Max./Avg.) (W/m²): 690 / 230
heat generation (Max./Avg.) (BTU/h/m²): 2355 / 785
