LED Cluster
The most famous example of its use is the Digital Gallery Sesi, nothing less than the façade of the FIESP building on Avenida Paulista in São Paulo.

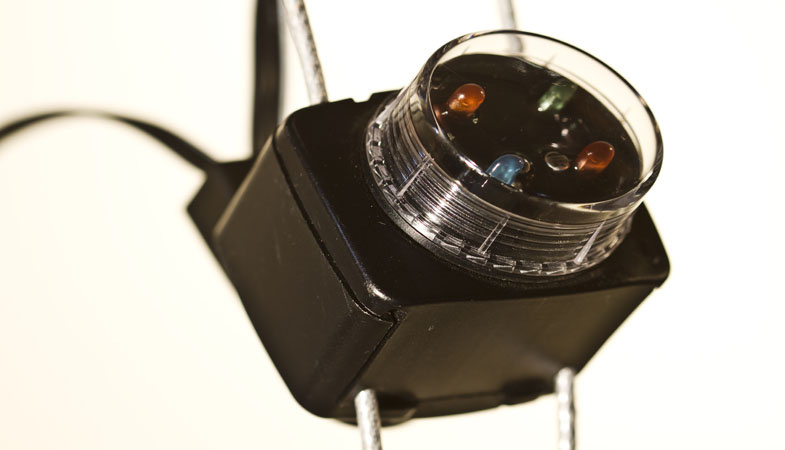

The cluster is a luminous LED unit composed of 4 LEDs: 2 red, 1 green, and 1 blue, high brightness. Each cluster acts as a pixel - a point, forming a screen in any format, size, or surface; such as a building facade, a scenic cladding, or a specific audiovisual installation, like a Christmas tree.
Environmentally responsible product: low energy consumption (0.6W/unit), without any waste generation, and reusable. Resistant to water, solid dust, shocks, and temperature variations (IP65).
The cluster is a luminous LED unit composed of 4 LEDs: 2 red, 1 green, and 1 blue, high brightness. Each cluster acts as a pixel - a point, forming a screen in any format, size, or surface; such as a building facade, a scenic cladding, or a specific audiovisual installation, like a Christmas tree.
Environmentally responsible product: low energy consumption (0.6W/unit), without any waste generation, and reusable. Resistant to water, solid dust, shocks, and temperature variations (IP65).
Technical specifications
- Dot pitch: Variable from 80mm to 500mm (upon request)
- LED/cluster: 4 LEDs (2R1G1B)
- Luminous intensity: 4.5 cd/cluster
- Cluster weight (without steel cable, with 58cm signal cables): 85g
- Fixing angles: 90° or 60° (central light angle relative to the fixing cable)
- Vertical viewing angle: 100°
- Horizontal viewing angle: 160°
- Power consumption (at full white): 375mW/Cluster
- Working voltage at cluster: 5V
- Current: 75mA/Cluster
- Colors (minimum): 4.3 billion
- LED lifespan: 100,000 hours (minimum)
- Operating temperature: -20°C to 55°C
- Power consumption per square meter (dot pitch 100mm): 37.5W/m²
- Signal input: DVI (possible to input in any format with converters)
- Control capacity of 1 control box: 4608 Clusters (128x36)
- Mounting system: Steel cables 5/32’ or 4mm plastic-coated (pair) or front-screwed in 34mm holes in up to 4mm thick sheet metal
- Memory for content: 256Mb (minimum)
- Power supply: 85-260VAC
- Cluster dimensions with steel cable support:
- Width: 54 mm
- Height: 46 mm
- Depth (with lens and sealing): 76 mm
- Dimensions without sealing and without steel cable support:
- Diameter: 43 mm
- Length: 53 mm (with lens fully seated)
